Packaging Machines

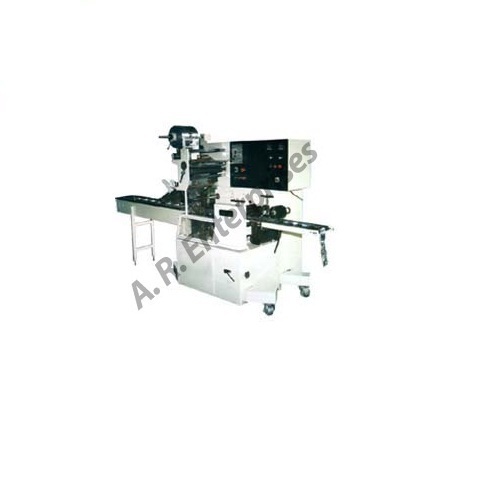

Application:
To wrap any kind of solid commodities such as biscuit, soaps, chocolate, cakes, instant noodles & any other rectangular, square, , round or irregular shaped product.

Sealing Type :
Pillow type sealing / centre sealing

Packing Size :
40mm - 300mm (film length)
20mm - 125mm (film width)
5mm - 56mm (film height)
(Enlarged type can be made upon order)

Packing Range :
Depending on specific gravity of material to be packed

Speed :
70 - 130 pouches / min.
(Depending on flow rate & volume of the product)

Packing Material :
All heat sealable laminate PET / POLY, PET / FOIL /
POLY MET, PET / POLY / CPP / OPP etc.

Semi automatic liquid filling machine for filling free flowing liquid such as Edible Oil, Hair Oil, Lubrication Oil, Shampoo, Juice in container, jar, pouch, tin etc.

Specification :

Filling Range : 5ml–50ml, 100ml – 250ml, 250ml – 500ml & 1000ml

Machine Dimension : (L) 600mm x (W) 755mm x (H) 680mm

Power Supply : 440volts / 3 Phase ( 4 wire system )
50 cycles / Sec. - 0.5 H.P. Output

Filling Speed : 300 to 1500 fills / hour (Depending on
Volume / Viscosity of the Liquid be Filled)

Net Weight : 80 Kgs. ( Approx )

Semi-Automatic Machine with Auger Filling System operates on the principle of positive displacement Screw operating under constant head it will have a hopper and provided with a lid. The precisely designed Auger displaces the product through funnel into the container held under the funnel. A presettable electronic controller with photoelectric sensor will be provided to control the filling cycle through an enclosed electromagnetic clutch/brake unit. The machine is ideal for filling wide range of non free flowing powder.

Specification :

Filling Range : 50gms – 500gms – 1000gms

Filling Speed : 28 – 30 fillings / min.
(Depending upon the product & quantity to be filled)

Electricity : 1hp., 220V single phase

Machine Dimension : (L) 585mm x (W) 1473mm x (H) 1728mm

Net weight : 175kgs.

The machine operates on the principle of volumetric portioning which is achieved by telescopic cups to absorb the batch variation of bulk density. The machine discharges the set quantity of product into the pouch / container held manually under the discharge hopper. The machine is ideal for filling wide range of free flowing powder.

Specification :

Filling Range : 25gms – 50gms – 100gms – 250gms – 500gms – 1000gms

Filling Speed : 30 – 32 fills per min.
(Depending upon the product & quantity to be filled)

Electricity : 1hp., 220V single phase

Machine Dimension : (L) 800mm x (W) 800mm x (H) 1500mm

Net weight : 150kgs.

The Foot operated sealing machine has a timer and a buzzer incorporated in it for ease of operation. The thicker the bag, the timer increases for sealing & vice versa. The buzzer informs the operator as to when the sealing is completed. The platform can be titled toward the operator thereby assuring effortless operation in sealing the pouches.

Specification :

Jaw Size : 8”, 12”, 16”, 18”, 20”, 24”

Sealing Width : 10 – 15mm

Type : Impulse sealing / Line type sealing

Power : 230 Volt, Single Phase, 50/60hz power supply

It is very suitable for small scale production. It has a timer for sealing different guage & different plastic materials. It has a buzzer for indicating the completion of sealing process. Seals PE, PP, BOPP, HM, Metallised film etc.

Specification :

Sealing size : 8”, 12”, 16”, 20”

Type : Impulse sealing

Power : 230 Volt, Single Phase, 50/60hz power supply
